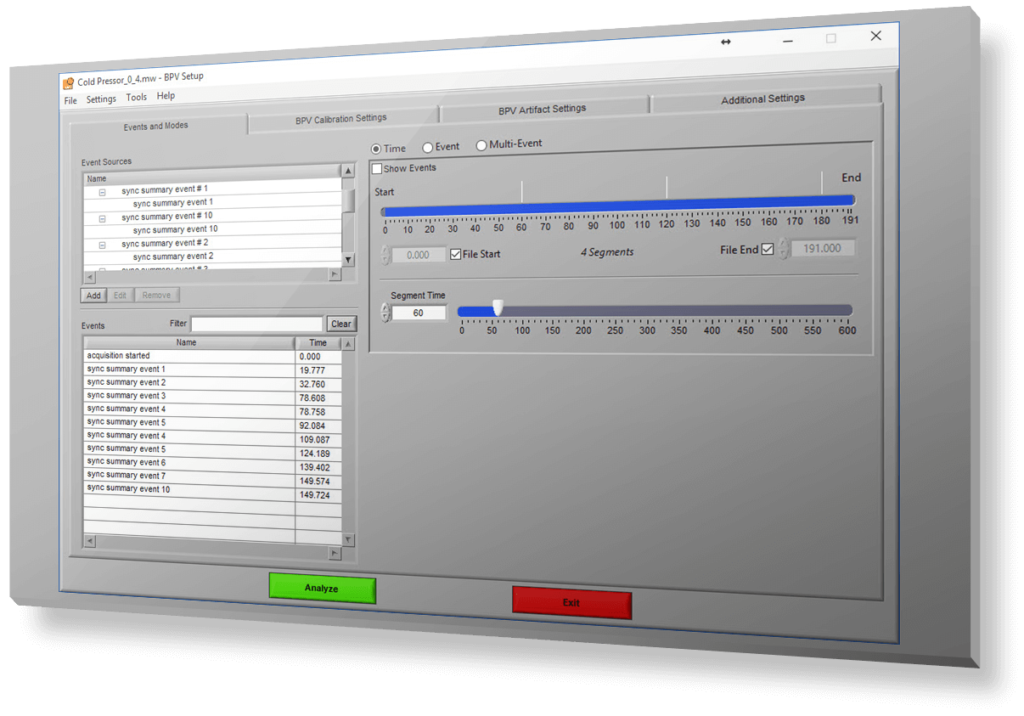

Powerful, flexible segmentation options.

• Analyze specific time spans with millisecond precision
• Utilize events to quickly and consistently jump to points of interest (baseline, tasks, etc) in the file
  • Automatically read events from MindWare, AcqKnowledge, Brain Vision files
  • Import events from Mangold INTERACT, Noldus Observer, and more
  • Detect events from digital pulses
• Continuous analysis for second by second calculation of statistics
• Load continuous BP data or PPG/PLE as well as a source of respiration (either directly, or derived from cardiac impedance signals)
• Supports MindWare data files (MWX/MWI, MW), AcqKnowledge 3 Graph (.acq), European Data Format (EDF), Biosemi Data Format (BDF), BrainVision data format (VHDR/EEG)
  • Import many other file formats using the ASCII-MW converter
• Automatically synchronize and playback up to 4 video files while viewing physiology data

• Know where your statistics come from – only published and peer reviewed algorithms are used throughout
• Visualize data with colorful, easy to understand graphs
• Automatic dual artifact detection algorithms help guide you to areas in the data that need further investigation/correction

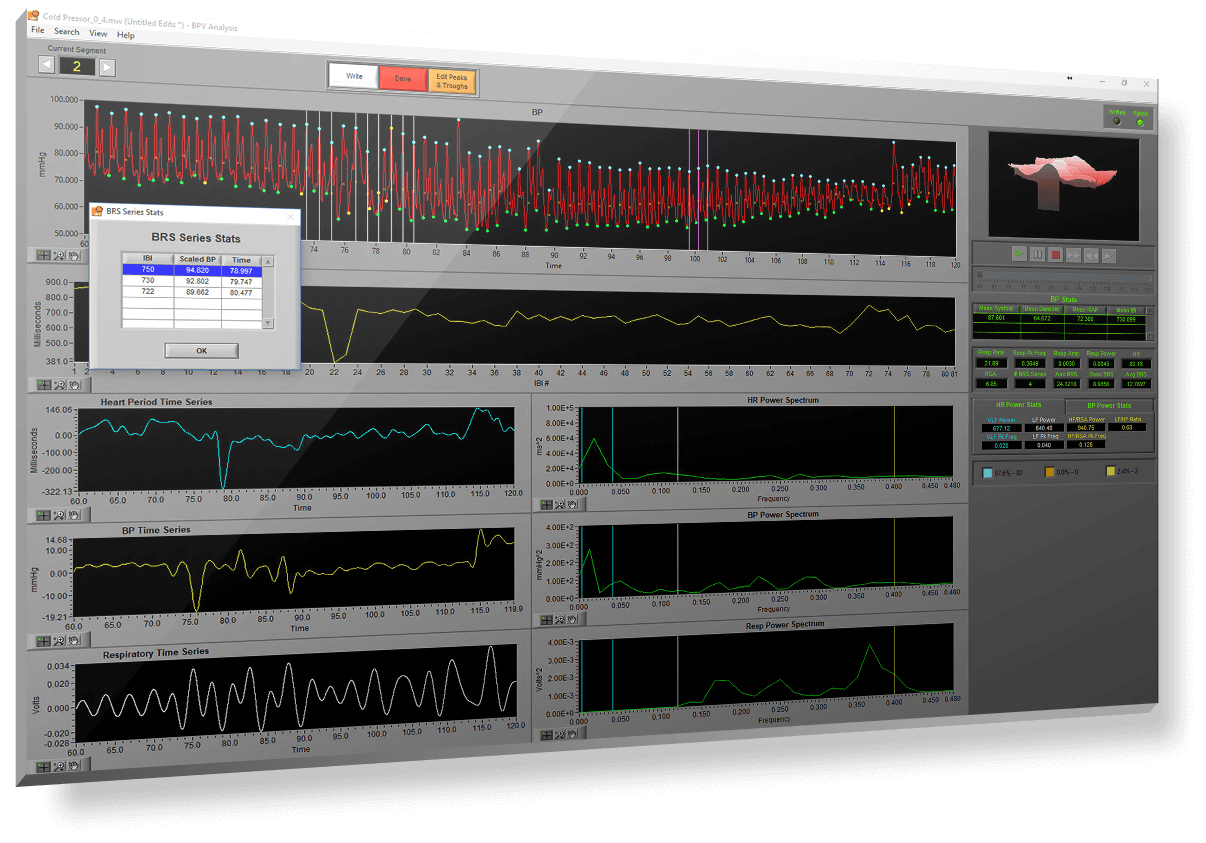

• Output popular, industry standard metrics of Blood Pressure Variability with the press of a button – no configuration needed. Automatically performs complex transformations to explore both the time and frequency domain
  • Heart Rate
  • Respiration Rate
  • Systolic/Diastolic Blood Pressure
  • Mean Arterial Pressure
  • Total Peripheral Resistance (* Requires Cardiac Impedance application)
  • VLF/LF/HF frequency band statistics
  • Respiratory Sinus Arrhythmia (RSA)
  • Heart Rate/IBI
  • Baroreflex Sensitivity (BRS)
  • And more
• Track respiration rate to validate RSA with flags to notify you of any potential issues.
  • Measure respiration directly (with a respiration belt) or derive from cardiac impedance signals
• Write all statistics to an organized Excel file for further review/analysis

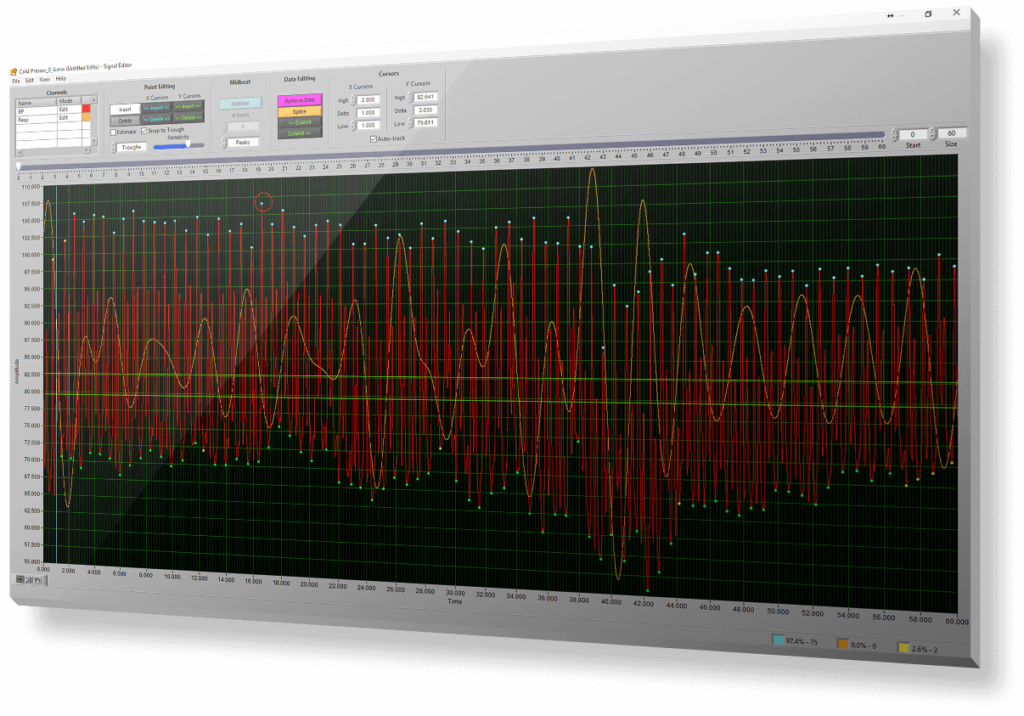

• The comprehensive graphical data editor allows you to easily manipulate detected peaks/troughs
  • Estimate the location of missing systoli/diastoli by inserting one or many midbeats – allowing you to easily preserve more data even in the presence of movement artifact. Amplitude is maintained as to not affect blood pressure level
  • Automatically track edits and the distribution of peaks/troughs (good vs estimates vs artifact) to ensure you are staying within the acceptable bounds
• Save multiple edit files to track editing techniques across many team members
